Refresh View's Metadata (Enumerate its view using SMO)

Posted at : Jul/13/2007
5760 Views

I was faced with the problem when i altered a view object in my database project. I add a column to the base table which is used by view, but the result was not appropiate with those changes. "Select * From myTable" in the query i used to build the view was not give me all columns. Why this could be happened?

I try to find the reason why...finally the answer came to me :) Yup...when we create a view, sql server store the metadata which describe all columns used in the view, security option, dependency, and the other options. If we alter the base table, say add a column...those changes was not automatically reflected to the metadata information. So we have to manually to refresh the metadata.

Sql Server has provide a system stored procedure named "sp_refreshview". It is used to refresh the metadata information in a view. The stored proc only require one parameter to passing, that is view's name to refresh. Let's say i have a view named "vProducts", so if we want to refresh that view we execute this script : EXEC sp_refreshview 'vProducts'

But you can imagine what we have to do if we have 20 view, 30 view , or maybe more than that to refresh those? Yeah...we have to execute sp_refreshview as much as the number of view to refresh.

In this article i have build a simple windows application to enumerate all view in a database and refresh all view or maybe just for some view. I used SMO object to enumerate database installed in the current instance server name, from the database choosed by the user the application automatically enumerate schema collection in the database. Then the application will populate automatically the view on your database with the appropiate schema.

It's easy to manage the database via SMO object. By double clicking a view's name in the checkedListBox on the application form, you can see the DDL script from that view. It's all use SMO object. We need to reference to Microsoft.SqlServer.Smo and Microsoft.SqlServer.ConnectionInfo assembly before use the SMO object as you can see on the picture below :

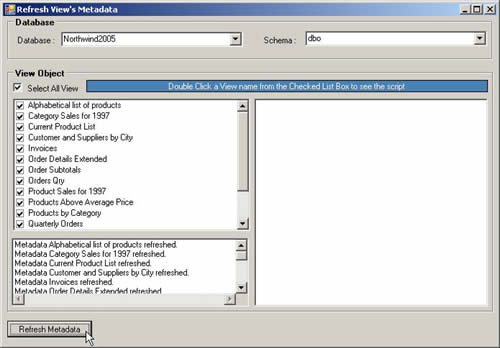

Let's see the result in action showing by the following pictures :

After you select the database, schema, all view listed on the checkedListBox. You can refresh a (some) view you want to refresh or maybe all view. The confirmation result will be given on the listBox under the checkedListBox.

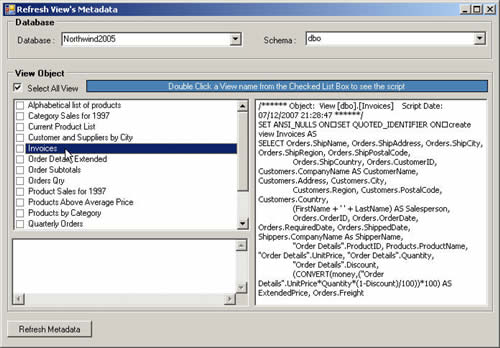

How about to check the DDL script from a view? Just double clicking a view's name from the checkedListBox, the DDL script will be shown in the right textBox control. See this picture :

So let's see the whole code...you can download this sample code.

   1:  using System;
   2:  using System.Collections.Generic;
   3:  using System.ComponentModel;
   4:  using System.Data;
   5:  using System.Data.Common;
   6:  using System.Data.Sql;
   7:  using System.Drawing;
   8:  using System.Text;
   9:  using System.Windows.Forms;
  10:  using System.Data.SqlClient;
  11:  using SMOObject = Microsoft.SqlServer.Management.Smo;
  12:
  13:  namespace RefreshView
  14:  {
  15:      public partial class frmRefreshView : Form
  16:      {
  17:          public frmRefreshView()
  18:          {
  19:              InitializeComponent();
  20:          }
  21:
  22:          //get the instance server
  23:          //this server object need reference to
  24:          //Microsoft.SqlServer.ConnectionInfo assembly
  25:          SMOObject.Server objServer =
  26:              new SMOObject.Server(".\\SQL2005");
  27:
  28:          private void GetDatabaseName()
  29:          {
  30:              foreach (SMOObject.Database aDB in
  31:                  objServer.Databases)
  32:              {
  33:                  //check whether this database
  34:                  //is system database or not
  35:                  if (!aDB.IsSystemObject)
  36:                  {
  37:                      cboDatabase.Items.Add(aDB.Name);
  38:                  }
  39:              }
  40:          }
  41:
  42:          private void GetSchema(string DBName)
  43:          {
  44:              //set the database
  45:              SMOObject.Database aDB = objServer.Databases[DBName];
  46:
  47:              //loop all schema
  48:              foreach (SMOObject.Schema aSchema in aDB.Schemas)
  49:              {
  50:                  cboSchema.Items.Add(aSchema.Name);
  51:              }
  52:              if (cboSchema.Items.Count > 0)
  53:              { cboSchema.SelectedIndex = 0; }
  54:          }
  55:
  56:          private void GetViews(string DBName,string Schema)
  57:          {
  58:              //set the database
  59:              SMOObject.Database aDB = objServer.Databases[DBName];
  60:
  61:              //loop all view object in the current database
  62:              foreach (SMOObject.View aView in aDB.Views)
  63:              {
  64:                  //show view object with appropiate schema
  65:                  if (aView.Schema == Schema)
  66:                  {
  67:                      clbView.Items.Add(aView.Name);
  68:                  }
  69:              }
  70:              if (clbView.Items.Count < 1)
  71:              { clbView.Items.Clear(); }
  72:          }
  73:
  74:          private void CheckedAllView(bool boolChecked)
  75:          {
  76:              for (int i = 0; i <= clbView.Items.Count - 1; i++)
  77:              {
  78:                  clbView.SetItemChecked(i, boolChecked);
  79:              }
  80:          }
  81:
  82:          private void frmRefreshView_Load(object sender,
  83:              EventArgs e)
  84:          {
  85:              GetDatabaseName();
  86:          }
  87:
  88:          private void cboDatabase_SelectedIndexChanged(object sender,
  89:              EventArgs e)
  90:          {
  91:              if (cboDatabase.SelectedIndex >= 0)
  92:              {
  93:                  clbView.Items.Clear();
  94:                  lbInfo.Items.Clear();
  95:                  cboSchema.Items.Clear();
  96:
  97:                  GetSchema(cboDatabase.Text);
  98:              }
  99:          }
 100:
 101:          private void chkSelectAll_CheckedChanged(object sender,
 102:              EventArgs e)
 103:          {
 104:              CheckedAllView(chkSelectAll.Checked);
 105:          }
 106:
 107:          private void btnRefreshMetadata_Click(object sender,
 108:              EventArgs e)
 109:          {
 110:              using (SqlConnection sqlConn =
 111:                  new SqlConnection("database=" + cboDatabase.Text +
 112:                  ";server=.\\sql2005;uid=sa;pwd=sql2005"))
 113:              {
 114:                  using (SqlCommand sqlCmd =
 115:                      new SqlCommand())
 116:                  {
 117:                      sqlCmd.CommandType = CommandType.Text;
 118:                      sqlCmd.Connection = sqlConn;
 119:
 120:                      sqlConn.Open();
 121:
 122:                      //clear listbox info
 123:                      lbInfo.Items.Clear();
 124:
 125:                      for (int i = 0; i <= clbView.Items.Count - 1; i++)
 126:                      {
 127:                          if (clbView.GetItemChecked(i))
 128:                          {
 129:                              //use sp_refreshview stored proc
 130:                              sqlCmd.CommandText = string.Format(
 131:                                  "EXEC sp_refreshview '{0}'",
 132:                                  clbView.GetItemText(clbView.Items[i]));
 133:
 134:                              try
 135:                              {
 136:                                  //exec the stored proc
 137:                                  sqlCmd.ExecuteNonQuery();
 138:
 139:                                  lbInfo.Items.Add("Metadata " +
 140:                                      clbView.GetItemText(
 141:                                      clbView.Items[i]) +" refreshed.");
 142:
 143:                              }
 144:                              catch (SqlException sqlEx)
 145:                              {
 146:                                  MessageBox.Show(sqlEx.Message);
 147:                                  return;
 148:                              }
 149:
 150:                          }
 151:                      }
 152:                  }
 153:              }
 154:
 155:          }
 156:
 157:          private void clbView_DoubleClick(object sender,
 158:              EventArgs e)
 159:          {
 160:              txtInfo.ResetText();
 161:
 162:              //use ScriptingOptions class
 163:              //to see the script
 164:              SMOObject.ScriptingOptions scriptOpt =
 165:                  new SMOObject.ScriptingOptions();
 166:
 167:              scriptOpt.IncludeHeaders = true;
 168:              scriptOpt.SchemaQualify = true;
 169:
 170:              //get the database
 171:              SMOObject.Database aDB =
 172:                  objServer.Databases[cboDatabase.Text];
 173:
 174:              //get the view name from the checkedlistbox
 175:              //by double clicking its item
 176:              SMOObject.View aView =
 177:                  aDB.Views[clbView.GetItemText(clbView.SelectedItem)];
 178:
 179:              //it's a string collection
 180:              //loop each string
 181:              foreach (string aScript in aView.Script(scriptOpt))
 182:              {
 183:                  txtInfo.Text += aScript + "\n";
 184:              }
 185:          }
 186:
 187:          private void cboSchema_SelectedIndexChanged(object sender,
 188:              EventArgs e)
 189:          {
 190:              if (cboSchema.SelectedIndex >= 0)
 191:              {
 192:                  clbView.Items.Clear();
 193:                  GetViews(cboDatabase.Text,cboSchema.Text);
 194:              }
 195:          }
 196:
 197:
 198:      }
 199:
 200:  }
